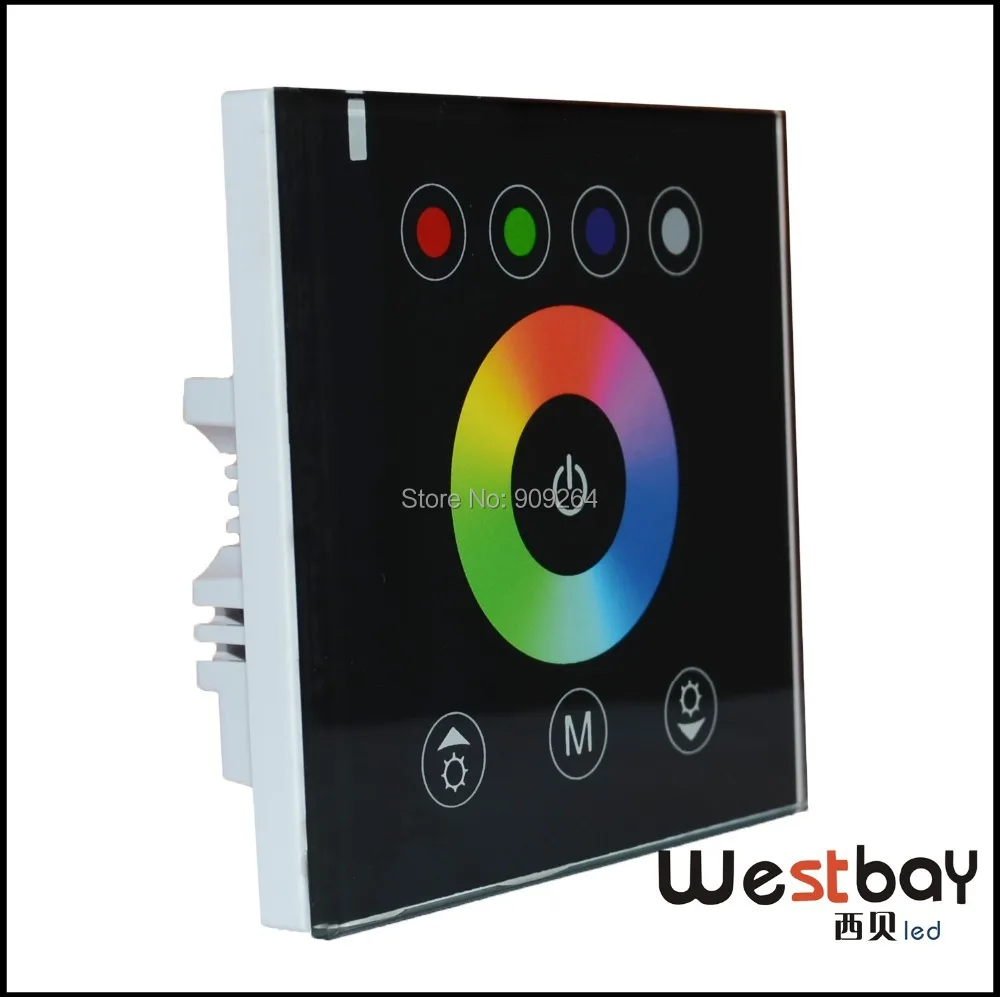

RGB LED touch controller 24V 12V DC LED Touch Panel Full-color Controller rgb led strip controller White,Black available

RGB touching controller Application:

RGB touching Controller is new generated product in 2013. The controller is adopted

glass panel and ABS plastic to base. Professional PCB design to aviod circuite

problem. Luxury Design,Fashion appearance.The controller can be installed embedly

to wall.

Can be connected to all led lights in DC12-24V. Example: led module, dot maxtric light,

flexible strip, wall washer ect. Install conveniencly and operate easily. Can be

apllicated to hotel decoration, home decoration, commercial lighting area and leisure

place ect.

Techincal Specification

1. 3CH output, 4A/CH, 12A/3CH

2. Input voltage: DC12-24V

3. Max Power: 144W @ 12V; 288W @ 24V

4. Connecting mode: common anode

5. Static Power consumption: <1W

6. Size: 86*86*34mm

7. Net Weight: 185g

8. Gross Weight: 215g

9. Effection: Seven colors fade in &out, seven colors fade in&out 2, RGB fade in

&out,RGB fade in&out2, seven color jump,RGB jump,red fade in&out,green fade in

&out,blue fade in &out,yellow fade in&out,purple fade in&out,cyan fade in&out, white

fade in&out, red flash, green flash, blue flash, yellow flash, purple flash, cyan flash,

white flash

User Instruction:

The color selected from the color ring can not be ajdusted the brightness and speed. You could choose the color from MODE if you want to ajdust the brightness and speed.

2. Enlarge capacity connection method:

If you want to connect more lights, please follow up the below connection method via Amplifier:

Installation instruction

Installation Method:

Notice:

1.Connect the light cable to controller, then connect to power supply. Make sure the

connection correctly before power on.

2. Make sure the power is DC12V-24V, Otherwise, the controller will be broken

3. When touch by hand, the indicator on top left corner shows red, which means that you have already touch it. If not, you do not touch it yet

4. Normally, the indicator lights around the binding post will always light after connecting. Or there is something wrong with the wiring

Please leave us Message to the panel color, otherwise, we will send it radomly.
