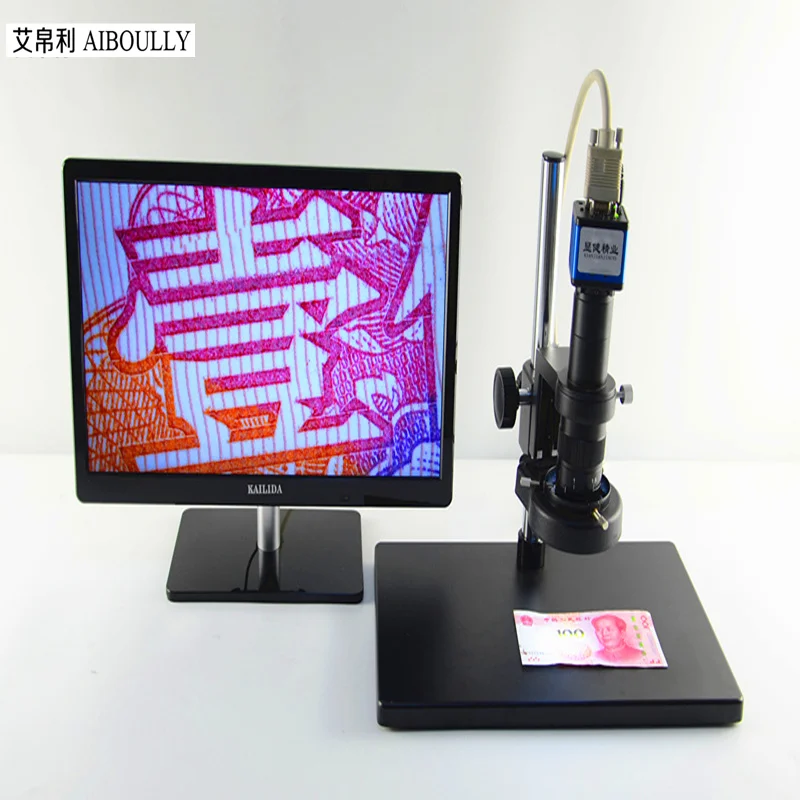

AIBOULLY 2 million pixel digital microscope tester diagnostic tool C-mount 0745 lens LED ring light Monocular magnifying glass

Best Glass High Rating Product provide digital magnifying glass, microscope digital, microscope microscope Big Stock New AIBOULLY 2 million pixel digital microscope tester diagnostic tool C-mount 0745 lens LED ring light Monocular magnifying glass. Get 5% discount Now! Now US $233.00/piece. Dont waste your time. Buy Now only in Guangdong photoelectric instrument Store Trusted Seller Store!

This product does not contain a monitor

VGA video microscope mainly to meet the modern digital, electronic products, electronic equipment, semiconductors, LED, LCD and other products on-line testing, as well as medical, biological and other fields of digital imaging observation, inspection, measurement. Widely used in microelectronics, mold, powder metallurgy, precision machinery, jewelry, watches, jewelry, fingerprint identification, ticket identification, printing, fiber, mobile phone repair, archaeological, biological anatomy, school teaching and other fields.

Imaging components 2 million pixel CMOS, effective pixels 1600X1200, 15 frames to 30 frames / sec (30 frames / sec @ 1024X768), resolution up to 900TV-Lines. VGA output mode: 1024X768 60Hz, 1280X1024 60Hz, 1600X1200 60Hz, 1920X1080 60Hz With CS lens interface, you can use any CS interface lens. Power input: + 5V DC allowable deviation of 10%, the maximum operating current of 900mA, standby current below 100mA. 4 cross lines, optional cross line number, color, line width, full screen display, can be moved to any location, can hide all cross lines. Chinese and English menu, simple and clear, easy to operate. Directly connected to the computer monitor, real-time video image viewing, the image is clear, stable, no flicker, in the short distance to watch the eye is not easy to fatigue. Adjust the best image effect method: the brightness of the light source is relatively bright, press POWER Key, the upper left corner of the screen will display "manual exposure", "manual exposure" disappeared on the screen, then go to the brightness of the light source, transferred to what you think is better. Product model; VMM200S Sensor type; 2 million pixels 1/3 inch CMOS color Effective pixels; 1600H * 1200V Data bits; 8bit Pixel size; 2.8 μm * 2.8 μm Frame rate; 15 frames / sec @ 1600X1200, 30 frames / sec @ 1024X768 Clarity; 1024x768 60Hz resolution above 600TV lines At 1600X1200 60Hz resolution when the 800TV line or more Scan mode; line by line Shutter type; electronic shutter Dynamic range; 71dB Signal to noise ratio; 44dB Sensitivity; 1.0 V / lux-sec (550 nm) Exposure time; 10μs-60ms, auto exposure White balance; automatic Lens interface; C / CS Video interface; standard VGA interface VGA output resolution; 1024X768 60Hz (default), 1280X1024 60Hz, 1366X768 60Hz 1440X900 60Hz, 1600X1200 60Hz, 1680X1050 60Hz, 1920X1080 60Hz Menu function; Brightness, contrast, color saturation, exposure brightness, english, auto exposure, manual exposure, vertical mirror, horizontal mirror, negative, number of cross lines, cross color, cross wire width Operating temperature; 0-60 ° C Power supply mode; external 5V DC allows 10% deviation Working current; 600mA Power; 3W Volume; 50 * 50 * 60 (mm) 180 times the big shot 1.C port zoom lens 2. Optical magnification 0.7 times -4.5 times (about 10 times -180 times in the 21-inch display) 3. Working distance: 100mm-125mm 4. View: 3mm-22mm 5. Size: 170mm (length) × 50mm (diameter) XDC-10A monocular lens set of high-definition, high depth of the three-dimensional images, mirror body zoom flexible and many other features.
