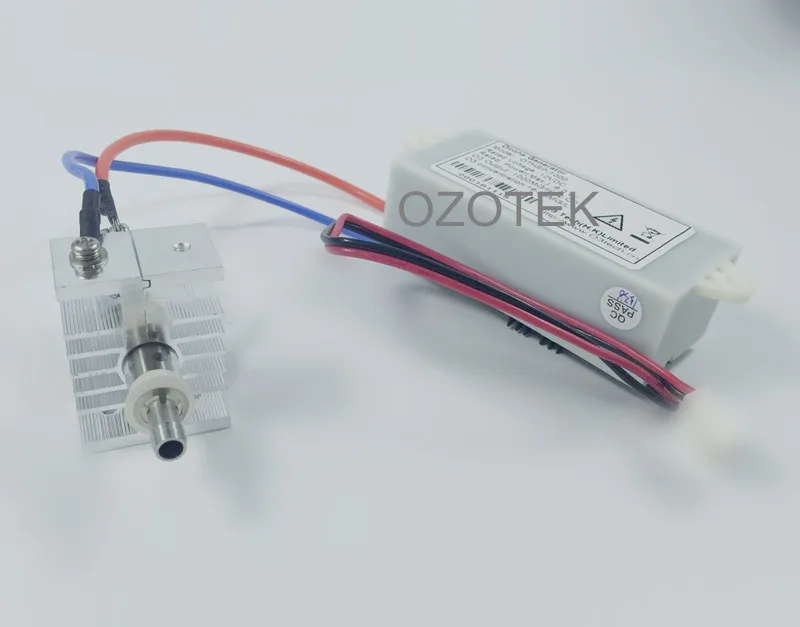

Corona discharge ozone glass tube model OTH-SP1000/ ozone generator parts

Best Glass High Rating Product provide ozone generator parts, ozone parts, parts generator Terrific Limited Corona discharge ozone glass tube model OTH-SP1000/ ozone generator parts. Get 10% discount Now! Now US $60.00/piece. Dont waste your time. Buy Now only in OZOTEK Store Trusted Seller Store!

Corona discharge ozone glass tube model OTH-SP1000/ ozone generator parts

Product Specification:

Product name: Ozone Generator

Model: OTH-SP1000

Technology theory: Corona discharge

Input Voltage: 100-240V; 12VDC adaptor

Ozone Output: 775.2 MG/H (max.) via pure oxygen

277.5 MG/H i (max.) via air

1051.8 MG/H (max.) via PSA oxygen generator (Refer to the testing report as following)

Gas flow: 1.5LPM recommended by air

Ozone concentration: 4.82mg/l in max via air flow 0.5LPM

131.6mg/l in max via pure oxygen flow 1/32 LPM

35.06mg/l in max via PSA oxygen 0.5LPM ( Refer to the testing report as following)

Power consumption: 6.0 W

Gas source feeding: Ambient air; dry air ; PSA oxygen concentrator or pure Oxygen tank

Ozone tube size: length: 76 x 40x 30mm

Tube connector: φ6mm(outter);

Power pack size: 80x33x26mm）

Operation period: Continuous working with cooling fan;

Application: Able to be used on water purification/air purification/medical application/Laboratory ozone application.

Product Feature:

Glass tube：Glass tube with 304 S. Steel electrode

Working with suitable size cooling fan to produce higher concentration ozone gas, and extend the working life.

Power pack: Designed & developing in Germany, and mass production in China which adopt the advanced technology

to get more stable frequency for ozone cell.

Product Advantage:

--- Higher quality glass & 304 electrode design

--- High & stable ozone concentration which upto 135mg/L by oxgen generator

--- Small size

--- Beautiful design

--- Light weight: 0.17kgs/pcs

--- Longer working life spans (More 10000 hours)

--- Lower running cost (lower power consumption 6W)

Testing report:

Ozone Analyzer：Ultraviolet absorption. UVO3-4400AC

Cooling method: air cooling

Testing condition: Temperatur 22℃ ; Relative Humidity: 75%

Product Application:
