Best Glass High Rating Product provide rear view camera, trunk handle, ccd hd Cool Promotion CCD HD car rear view camera for Ford focus hatchback sedan focus2 focus3 trunk handle switch camera wire wireless parking assist. Get 45% discount Now! Now US $22.00/piece. Hurry buy Now before back to normal price! Normal price US $40.00. Dont waste your time. Buy Now only in HUIMU Trusted Seller Store!
HOt sales
Associated with camera
(Kindly Note: due to our companys products are constantly updating, when the chip upgrade, the guide line may be a little different ,we dont special notice it ,we will update quickly our description same as the upgraded product . of course ,buyer can contact with seller and get the new message before you buy..)

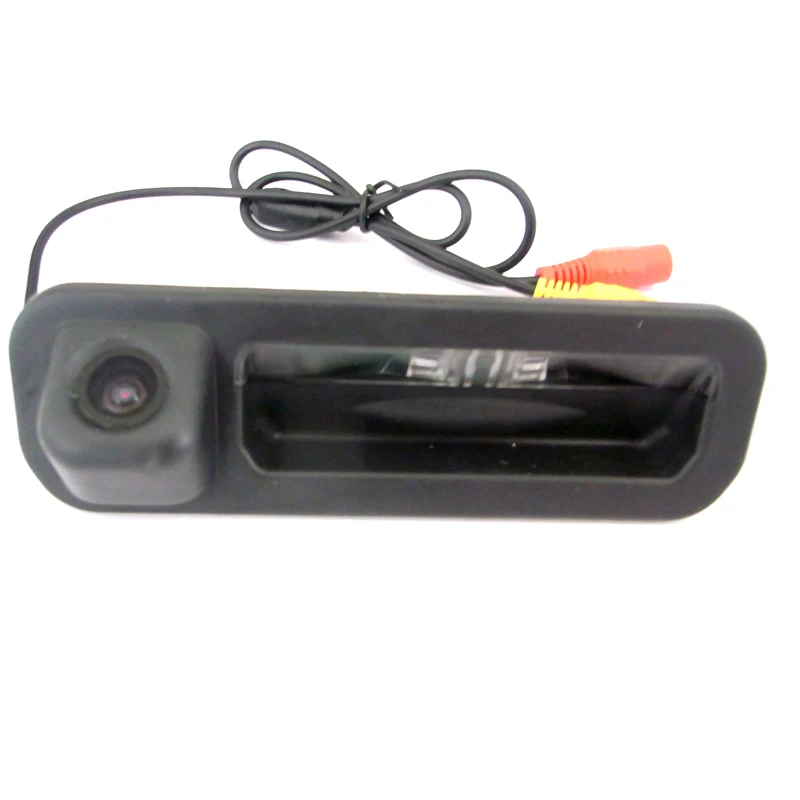

The camera can be fit : for 2012-2013 Focus hatchback /sedan trunk handle camera
In different countries, car models can be differentiated
Please check your car trunk handle covers size before you buy ,thanks.Maybe a few of the countrys camera are different.
You can select for SONY CCD camera ,wire or wireless camera .
please read the decription .thanks
This camera send without guiding line as default,when you need the camera with guiding line please cut off the small white line*The cable as below (6m AV cable as default)
(it is default) | If you need ,you have to leave message to us ,only can be send from China ,Cant select for Russian and US shipment)
|
for wireless Transmitter receiver shown
1,when you connect normal monitor 4.3 /5" ,DVD wihtout trigger line ,please select this
2,when you connect portable GPS for ,the plug is 2.5mm
IMPORTANT NOTE: if you will connect 7" monitor or your DVd with reversing trigger line.please have to buy wireless receiver with trigger line,and please have to
the blue line is ACC reversing the priority line
Connection:
Common problems and solutions(Kindly answer your questions:)
(1) Can this camera install on rearview mirror recorder?
NO, it cant ,Usually it can connect TFT monitor, mirror monitor,RCA DVD ,but cant support any Driver recorder.
(2) Can the camera fit my car ?
In different countries, car models can be differentiated Please check your car license plate light cover or trunk hand size before you buy ,thanks.Maybe a few of the countrys camera are different.
(3)Do the camera have reference line?
there is reference line as default for rear camera
(4)About the video line, it is AV or AVIN(2.5mm) for portable?
AV is default,if you need AVIN ,please leave message follow your order(only support Shipment from China ).
(5).Why the image occurred jitter, splash screen, interference,unstable, Black and white color when you are reversing?
1) The image becomes black and white color just because you buy a wrong TV system. This camera built in NTSC system as default,
if your monitor is PAL system, it will be showed jitter , Black and white color.
Solution:
a. Please set up the GPS TV system as automatic firstly when using, then see whether it still can set the system.
Because there are many monitor with 2 system in market, it can set. But some old-type GPS cant set. So please choose the right system to fit the camera.
b. Please must check the right cable connection installation.
c. If above solutions still cant deal, please ask your local professional car staff for help.
2) The image occurred jitter, splash screen, unstable just because the
voltage is lower than we suggest.
Solution:
Different place and using-situation will occurred some of the car output voltage is different. Car reversing is not powered by DC,
it will add a Pulse signal to disturb , so it will unstable .So we suggest you need check the voltage whether as 12V,or please add a delay to use.
(6)our car have video and power cable,Can you use it when I buy this camera?
Yes, it can, it support RCA plug. But we suggest you dont use youself cable, because the line may be aging and defined different .
7.How to install?
a. For universal camera, it installs through 2 screws and backrest or .it can fix near the location of license plate light.
b. For dedicated camera, it installs in license plate light directly. We suggest you install the camera in professional car modification and beauty shop
All chips description below <1>below CCD cameras image shown CCD camera is high clear, better quality than the Colorful CMOS andCMDNOTES: The Night vision is just in case of reversing lamp, the Picture comes from real recording Video .
How to install : Specification:CCD chips descriptionImage Sensors | 1/3"Color CCD (default to be send) | 1/3"for CCDSony color |
TV System | NTSC/PAL(NTSC as default,If you want Pal system,we have to send it from China,and leave message to us ) | |
Effective Pixels | 720X480/720x576 | 728X582/728x512 |
Sensing Area (mm) | 3.3 x 2.6 | 3.3 x 2.6 |
Resolution (TV Lines) | 520 | 600 |
Minimum illumination | 0.1 Lux / F1.2 | <0.1 Lux / F1.2 |
with lEDs 0.01Lux/F1.2 | ||
Horizontal Sync.Frequency | 15.625 KHZ | 15.625 KHZ |
Vertical Sync.Frequency | 50 HZ | 50 HZ |
Video Output | 1.0Vp-P75 Ohm | 1.0Vp-P75 Ohm |
AGC | Auto | Auto |
BLC | Auto | Auto |
Night Vision | Yes | Yes |
IP Rating | IP67~68 | ip67~68 |
S/N ratio | Better than 48dB | Better than 48dB |
Lens | F=1.8 | F=1.8 |
Lens Angle (Deg.) | wide angle | |
Current Consumption (mA) | 85~115 | |
Power Supply (DC V) | 12V | 12V |
Operating Temperature (Deg.C) | -20~+75(RH95% Max.) | -20~+75(RH95% Max.) |
Storage Temperatur(Deg.C) | -40~+85(RH95% Max.) | -40~+85(RH95% Max.) |
For wire camera(this link only for wire) 1 x car Camera1x 6m video cable 1x power supply cable 1X user manual | For wireless camera: 1x car camera |
