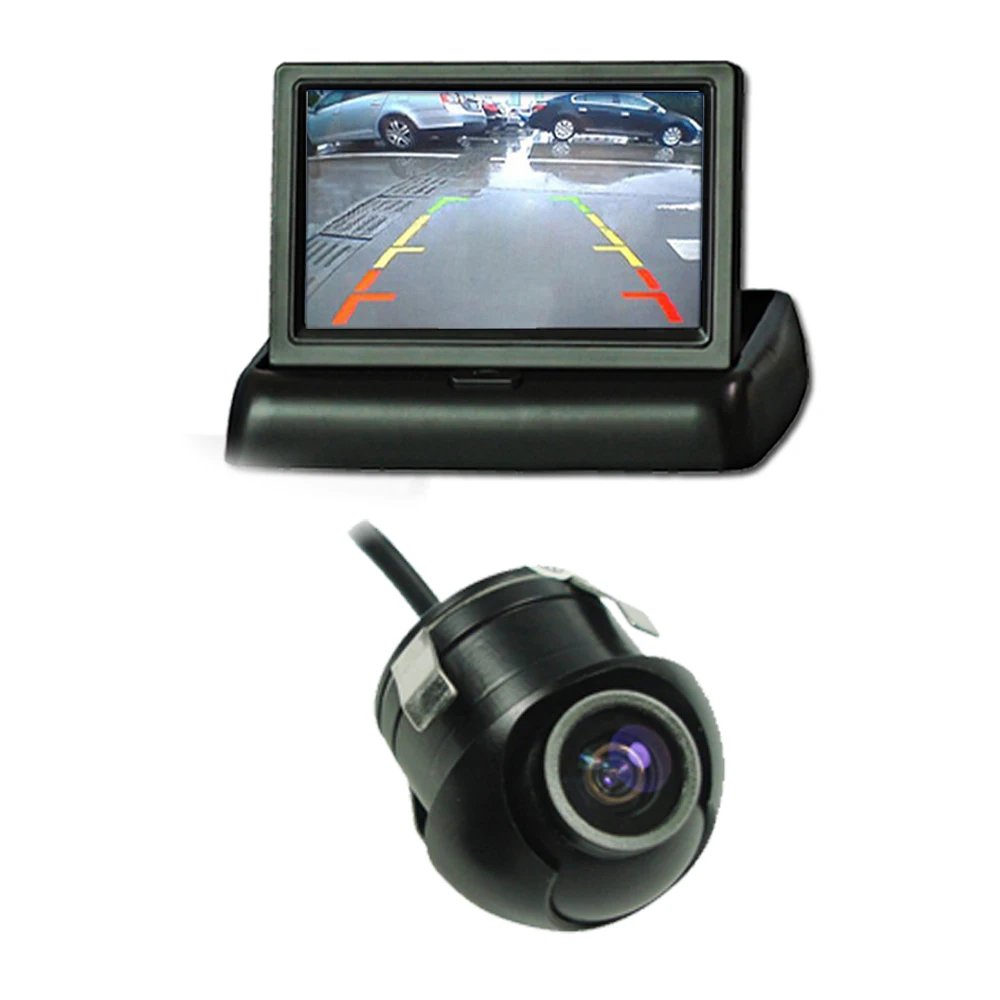

Best Glass High Rating Product provide ccd 360, rear view camera, ccd rearview camera Hot Cheap Easy install CCD 360 degree camera 4.3 Rearview Parking Monitor Folding Foldable TFT LCD video screen rear view reverse camera. Get 14% discount Now! Now US $28.95/piece. Hurry buy Now before back to normal price! Normal price US $33.66. Dont waste your time. Buy Now only in HUIMU Trusted Seller Store!
Hot sales
this Camera (rear view /front view /side view ) fit all of car
please read "Common problems and solutions" before you order,it is below
Main feature:It can be 360 degree rotation
Special Car Rear View reverse backup Camera (rear view /front view /side view ) rear view camera with reference line as default (if you want front and side view ,please leave message,thanks) for all class of cars,It can be connect DVD AV plug (AV plug as default) and GPS 2.5mm plug(leave message)
Main feature:It can be 360 degree rotation
Kindly note: (If you want to buy wireless camera ,
please first you put the two product links into "add to car" then to buy
GUide: select your product
wireless camera only include :camera ,wireless reciever and Transmitter,manual ,not include wire.
Note: CCD camera is high clear, better quality than the Colorful CMOS andCMD.
we have seven colors for this camera,Black camera as default ,if you need other color ,please have to leave message.
Because the light,or monitor screen. individual product pictures and real color may be difference, its normal phenomenon.please understand.thanks.
the 7colors is available in China , only black color for USA sending,please learn,thanks
compare with the power wire
we select only 2mm high cost of enameled wire, in the case of high quality , it is very small and soft ,so it is very easy to insall and adjust the angle
see the below picure ,if we use wire (2) ,the a is difficult to adjust 90 ,because the position b is very narrow. another, our car rear-view mirror have no
enough of position.
Installation as shown
Monitor 1,
Common problems and solutions(Kindly answer your questions:)
(1) Can this camera install on rearview mirror recorder?
NO, it cant ,Usually it can connect TFT monitor, mirror monitor,RCA DVD ,but cant support any Driver recorder.
(2) Is the camera front /side or rear view?
the camera can be rear view /front view /side view . please buy it according the options
(3)the camera have 7 colors ,do we can select the colors?
when the camera will be send from USA or Russion ,you cant select ,please buy according to the
when you slect shipping from China, you can select from the 7 colors .but have to leave message to us.
(4)about the video line, it is AV or AVIN(2.5mm) for portable?
AV is default,if you need AVIN ,please leave message follow your order,(only support Shipment from China )
(5).Why the image occurred jitter, splash screen, interference,unstable, Black and white color when you are reversing?
1) The image becomes black and white color just because you buy a wrong TV system. This camera built in NTSC system as default,
if your monitor is PAL system, it will be showed jitter , Black and white color.
Solution:
a. Please set up the GPS TV system as automatic firstly when using, then see whether it still can set the system.
Because there are many monitor with 2 system in market, it can set. But some old-type GPS cant set. So please choose the right system to fit the camera.
b. Please must check the right cable connection installation.
c. If above solutions still cant deal, please ask your local professional car staff for help.
2) The image occurred jitter, splash screen, unstable just because the
voltage is lower than we suggest.
Solution:
Different place and using-situation will occurred some of the car output voltage is different. Car reversing is not powered by DC,
it will add a Pulse signal to disturb , so it will unstable .So we suggest you need check the voltage whether as 12V,or please add a delay to use.
(6)our car have video and power cable,Can you use it when I buy this camera?
Yes, it can, it support RCA plug. But we suggest you dont use youself cable, because the line may be aging and defined different .
7.How to install?
a. For universal camera, it installs through 2 screws and backrest or .it can fix near the location of license plate light.
b. For dedicated camera, it installs in license plate light directly. We suggest you install the camera in professional car modification and beauty shop
All chips description below <1>below CCD cameras image shown CCD camera is high clear, better quality than the Colorful CMOS andCMD
Specification:CCD chips description | Image Sensors | 1/3" Color CCD |
| TV System | NTSC/PAL(NTSC is default) |
| Effective Pixels | 728X582/728x512 |
| Sensing Area (mm) | 3.3 x 2.6 |
| Resolution (TV Lines) | 480 |
| Minimum illumination | <0.1 Lux / F1.2 (with LED 0 LUX/F1.2) |
| Horizontal Sync.Frequency | 15.625 KHZ |
| Vertical Sync.Frequency | 50 HZ |
| Video Output | 75 Ohm |
| Gamma Consumption | 0.45 |
| AGC | Auto |
| BLC | Auto |
| Night Vision | Yes |
| IP Rating | IP66 |
| S/N ratio | Better than 48dB |
| Lens | F=1.6 |
| Lens Angle (Deg.) | wide angle |
| Current Consumption (mA) | 85-115 |
| Power Supply (DC V) | 12 |
| Operating Temperature (Deg.C) | -20~+75(RH95% Max.) |
| Storage Temperature (Deg.C) | -40~+85(RH95% Max.) |
For wire camera (this link only wire) 1 x car Camera1x 6m video cable 1x power supply cable 1X user manual | For wireless camera: 1x car camera 1x Transmitter 1x receiver 1x user manual |
We ship within 24 hr. after payment is received
The order will be shipped Post Air Mail. if you need other shipping way,please feel free to contact us,thanks! It is seldom, but if you can not accept any delay, please choose fast shipping or do not bid the item.
Fast shippingExpress Service ( EMS,DHL,USPS ) is available, Contact us If you have any questions please feel free to contact us . We will respond within 1 business day or less.
It s our honor to provide excellent service for you, thank you! Return policy What Happens If I have a Problem?
If you have a faulty or damaged item or for any reason receive what appears to be incorrect goods please contact us by chatting massage or email ,and explain your problem. We will respond within 1 full working day. Could I get my money back ?
Sure. if you want to return the item for above reason or any other seasons within 14 days after item received, we will offer a full refund to you once the item is sent back with original package. How about the return shipping fee ?
Please kindly know that the buyer will be responsible for the return shipping fee, thanks for your kindly understanding.Feedback:
Please leave us positive feedback and 5 stars in all detailed ratings if item received in good condition;
For Buyers that is not satisfied with your shopping Experience, you can always contact us first before you leave feedback;every problem could be worked out via good communication between both sides.Thank You So Much For Shopping in our store. associated with camera
